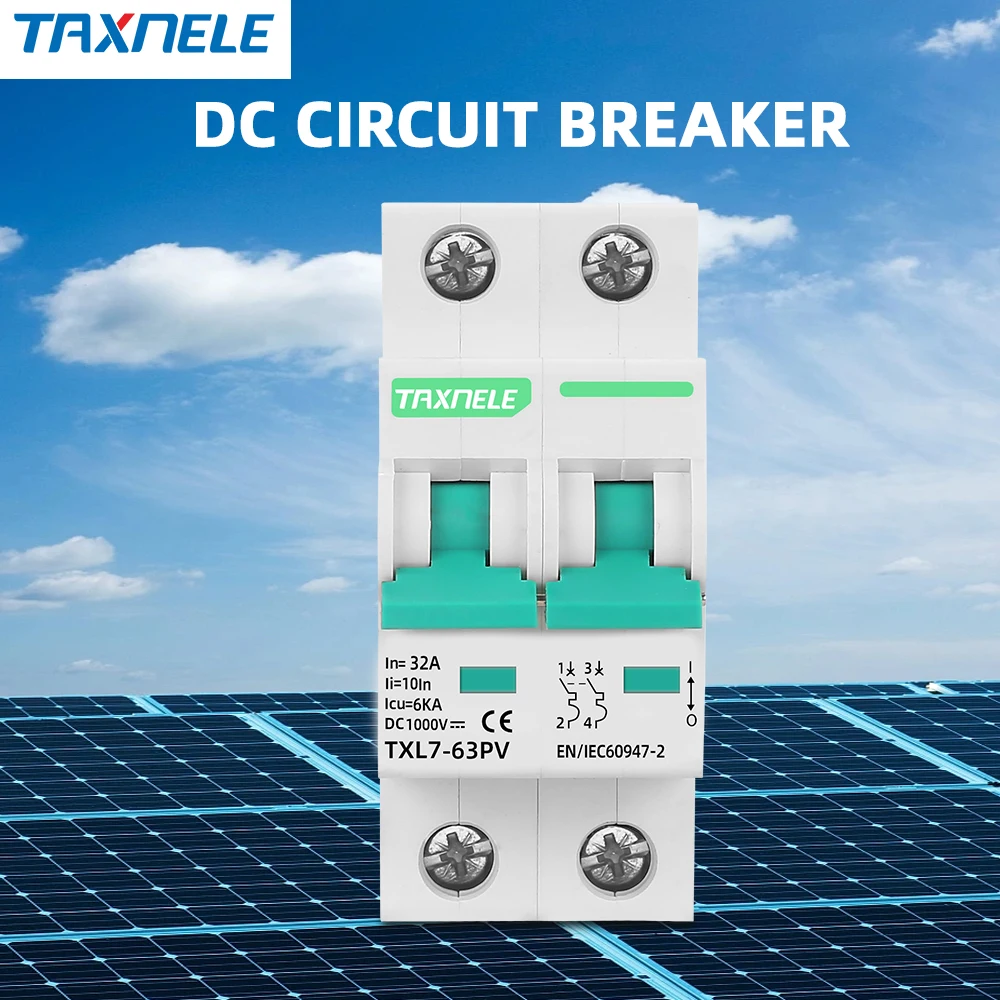

TAXNELE TXL7-63PV 1000V Photovoltaic System Protection Specifications

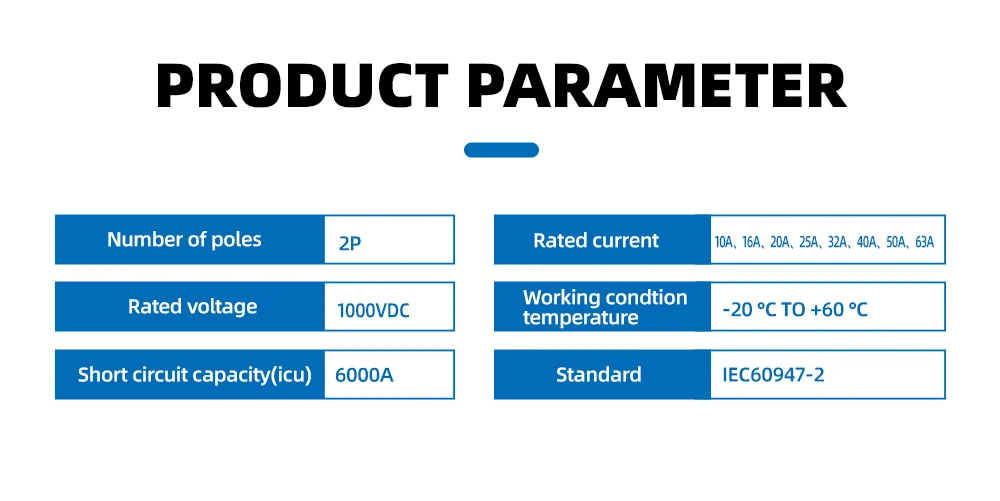

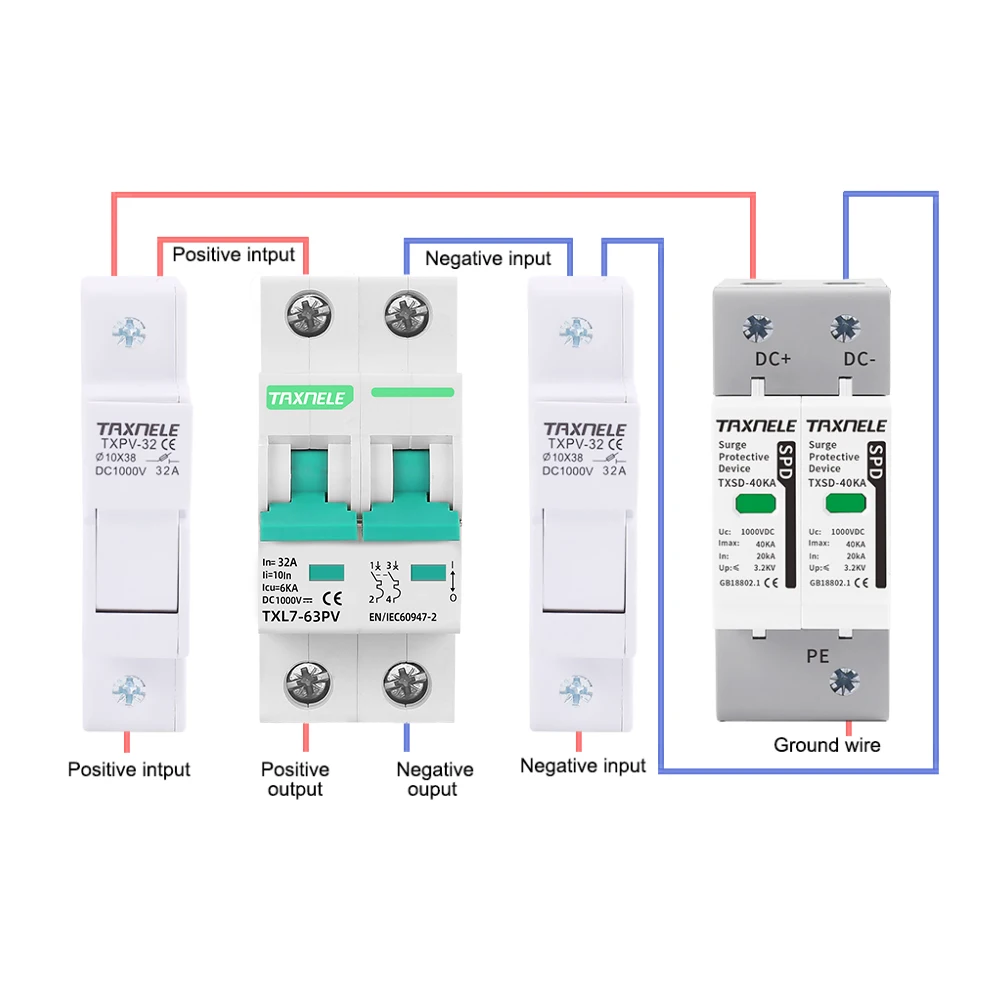

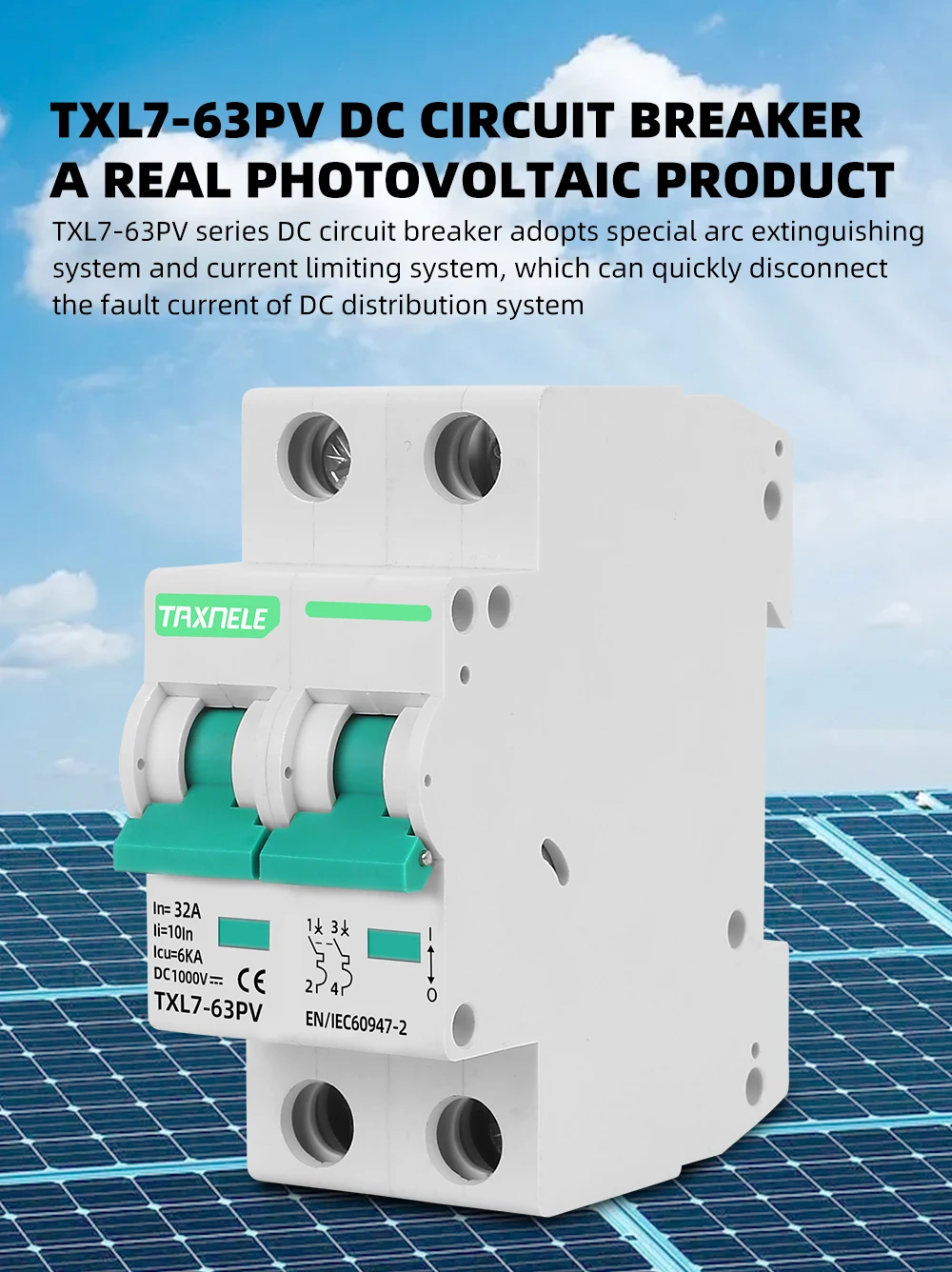

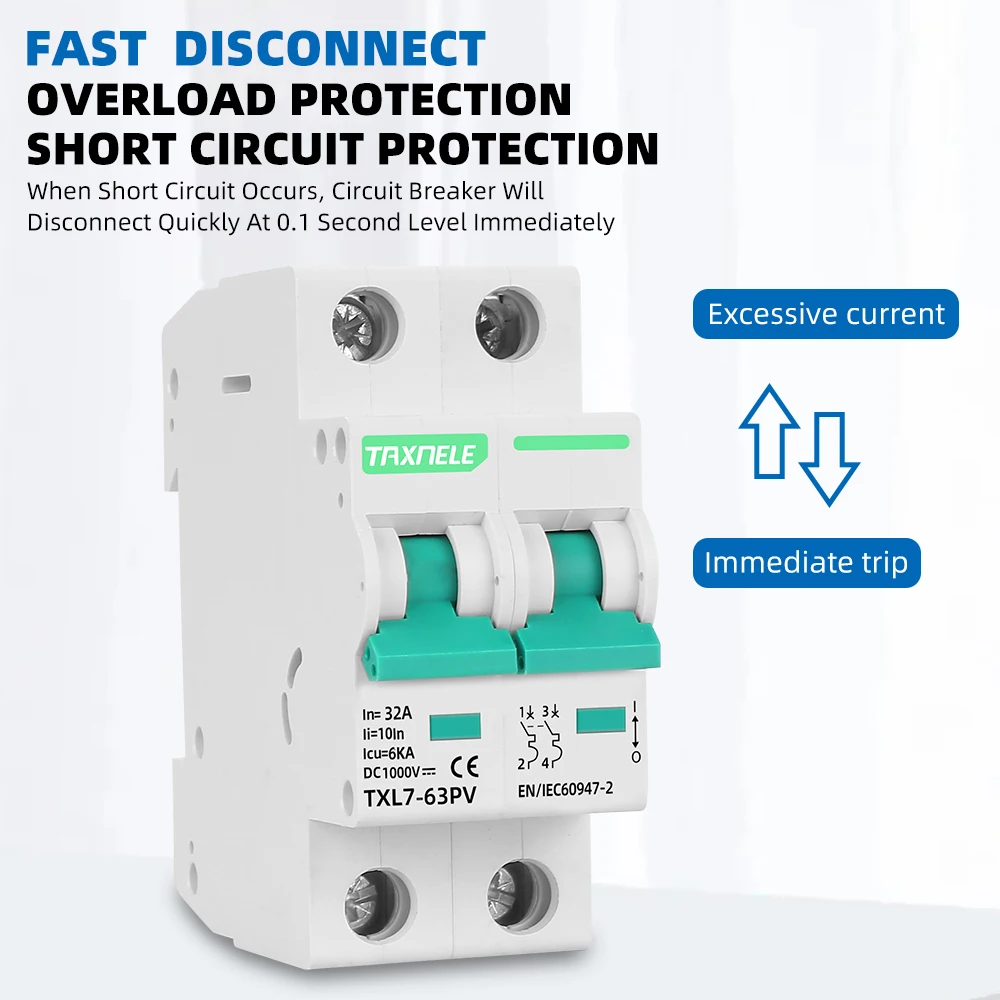

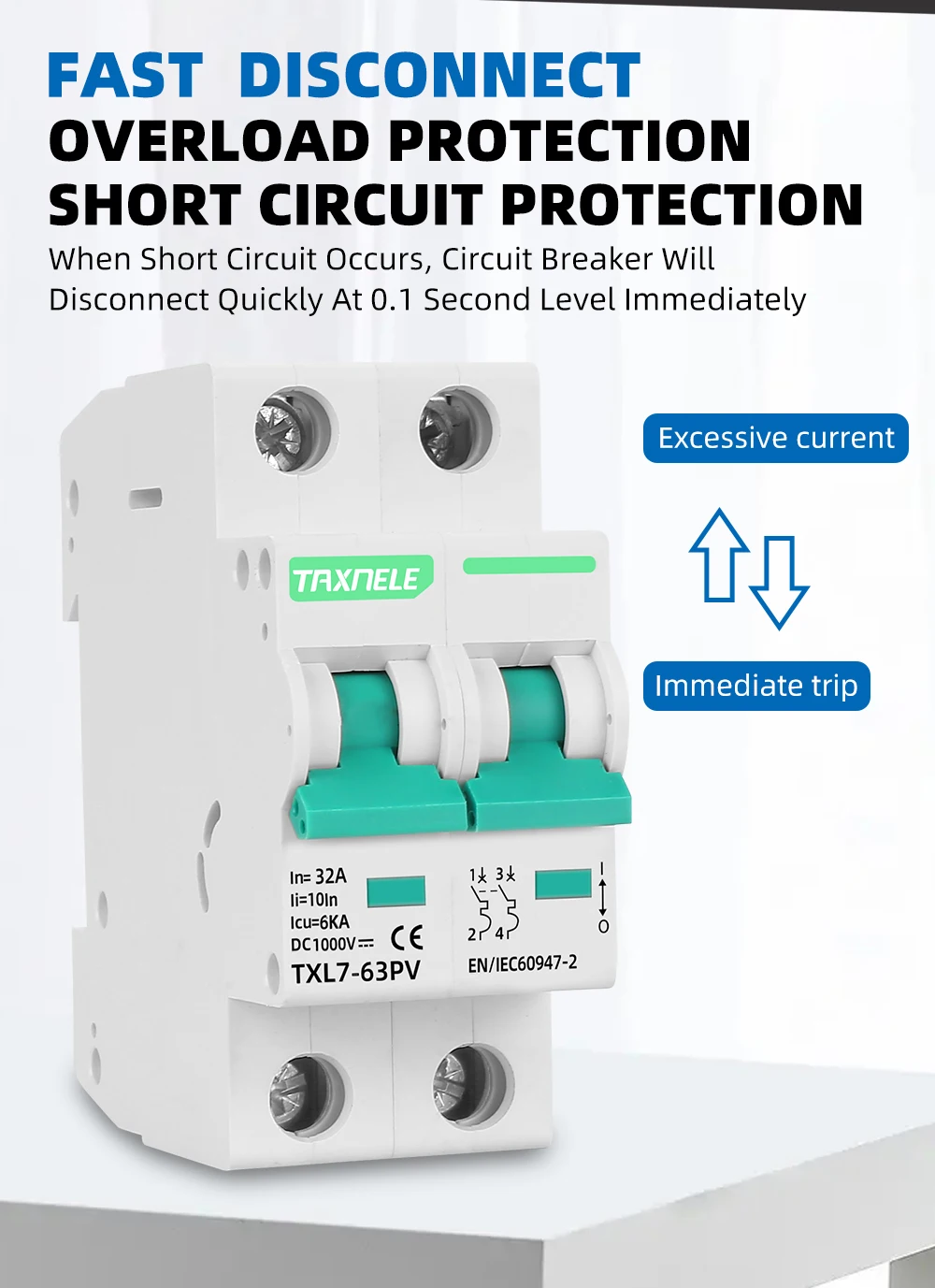

The TAXNELE TXL7-63PV achieves 1000V DC rated isolation voltage, accommodating the highest-voltage string arrays used in modern utility-scale and advanced residential photovoltaic systems without derating or additional series protection. Overload battery protection triggers through thermal sensing elements that detect sustained current above rated amperage, activating disconnection within 1-5 seconds depending on severity of the overload condition in your solar configuration. The L7 designation indicates enhanced arc suppression capability specifically engineered for DC photovoltaic faults, where arc extinction requires active gas expansion chambers rather than passive contact separation. Seven amperage options ranging from 10A through 63A let you downselect to the exact battery current rating, preventing unnecessary system loss and improving efficiency metrics across all load scenarios. The 2P configuration isolates both positive and negative solar strings, ensuring complete DC circuit interruption during maintenance shutdowns or emergency disconnection events in your photovoltaic installation.

Why Solar Energy Systems Require TAXNELE TXL7-63PV Breaker Protection

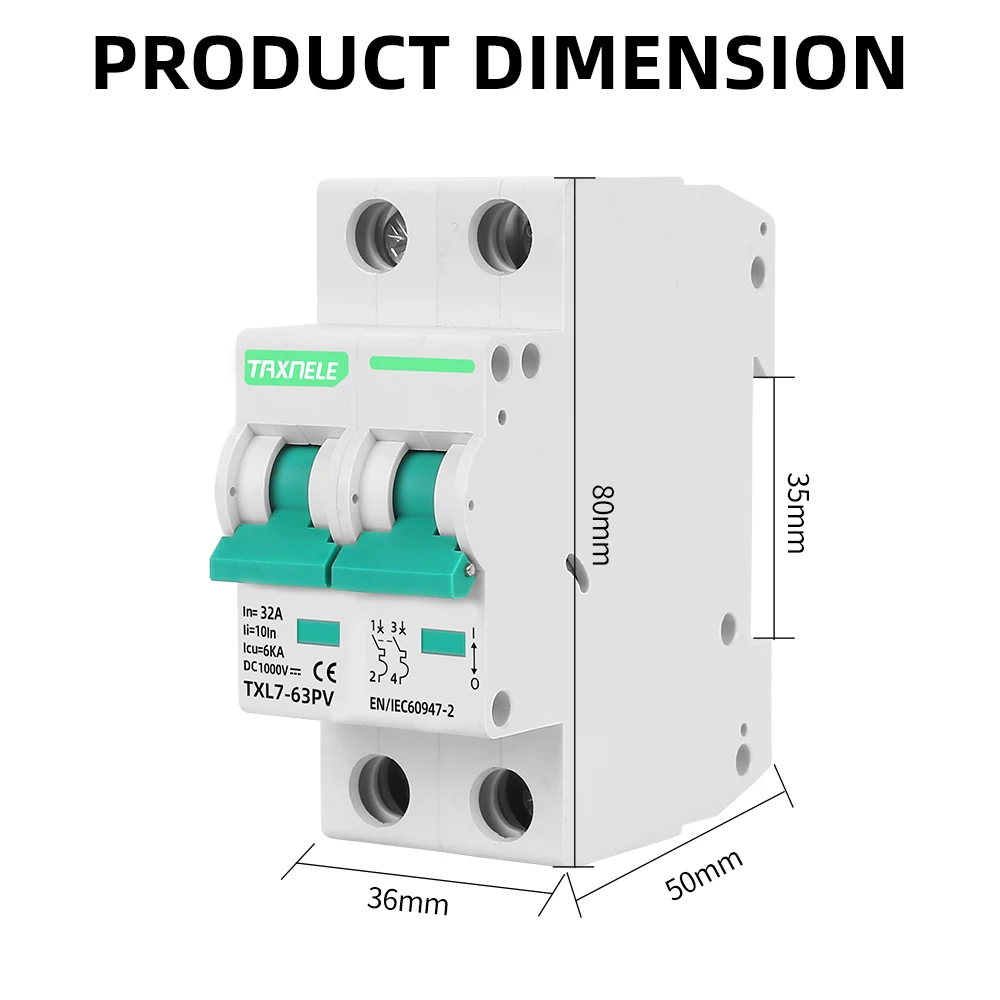

High-voltage photovoltaic arrays generate sustained DC fault currents that behave fundamentally differently from AC transients, requiring specialized arc-extinguishing technology that standard household breakers cannot provide safely. This solar mini circuit breaker meets UL 4185 certification for use in photovoltaic systems, proving its design through rigorous arc testing with real solar fault currents under field conditions. Residential and commercial installers specify this component specifically because its overload battery protection prevents cascading damage to expensive battery storage systems during grid disturbance events or load anomalies. The compact DIN rail form factor integrates seamlessly into solar disconnect enclosures alongside monitoring equipment and other DC system components, simplifying the engineering and layout of complete photovoltaic installations. Shop the official TAXNELE online store today to order your DC 1000V protection components with full technical documentation, fast worldwide shipping, and direct access to application engineering support for your specific solar project requirements.
